Ventilated Bakery Freezer model B 800 BT

- Material: (housing and interior) stainless steel
- Door self-closing, lockable
- With 10 runners
- For W 600 x D 800 mm (or 2 x W 600 x D 400 mm) grids
- Supplied without grids/plates
- Interior lighting
- Heated door frame to prevent condensation
- Digital temperature control (DIXELL)
- Insulation: 65 mm
- Forced air cooling
- Automatic defrost
- Temp. -18 / -22 °C
- Connection: 230 V - 50 Hz - 0.675 kW
- Capacity (gross/net): 852 / 534 liters
- Internal dimensions: W 624 x D 861.5 x H 1410 mm
- External dimensions: W 740 x D 990 x H 2010 mm
- Weight: 170kg
- Refrigerant: R290

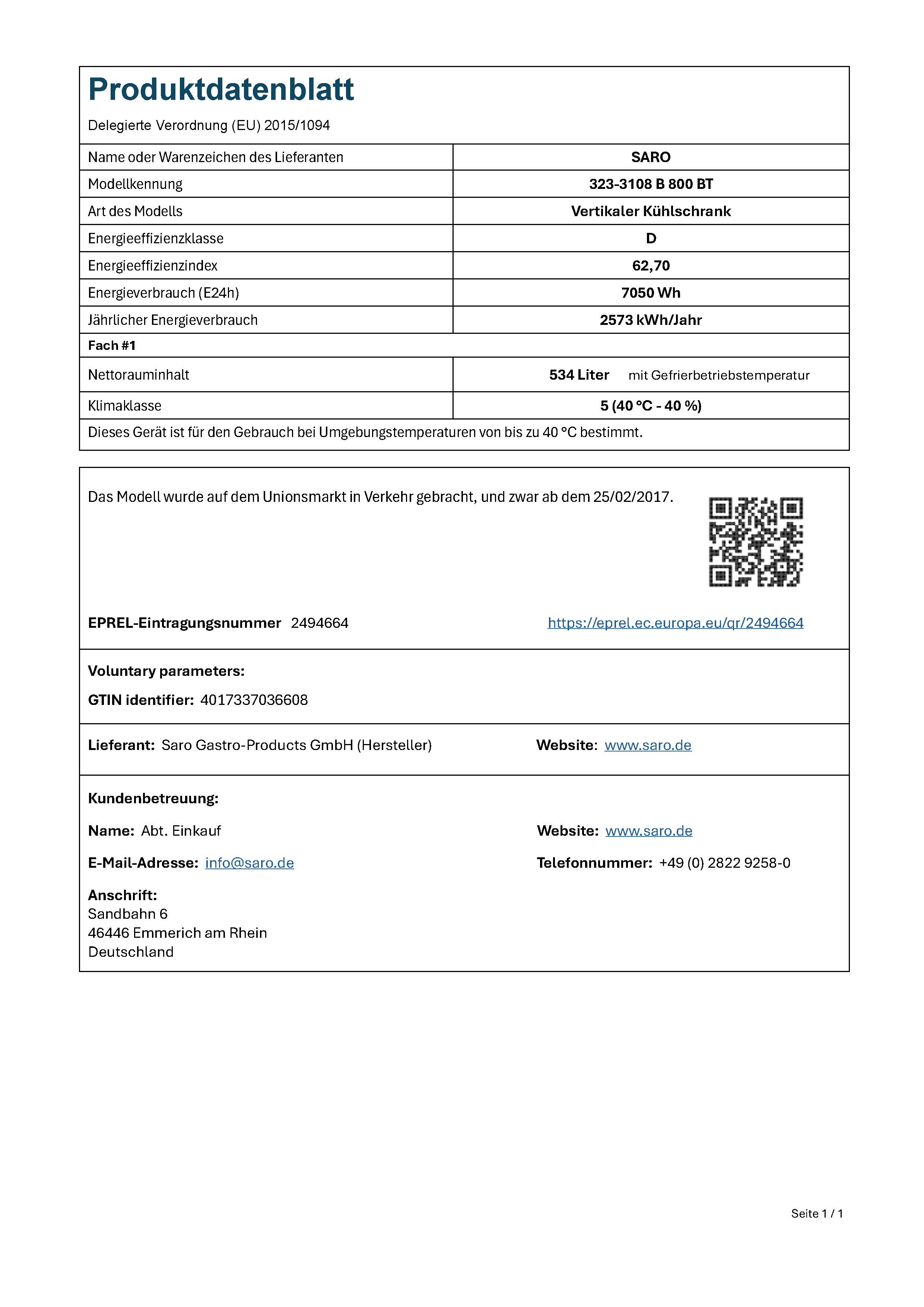

- Energy efficiency class: D (spectrum A+++ to G) with climate class 5
-> high-performance device!
- Sound level: approx. 48dB(A)

Safety and Warning Instructions

- Place the device exclusively on a stable, level surface.
- Ensure that the mains voltage matches the specifications on the rating plate.
- Children and unauthorized persons must not operate or misuse the device.
- Never clean the device with a water jet to avoid the risk of short circuits.
- After transporting the device, it must remain upright for at least 24 hours before being switched on to prevent damage to the refrigerant circuit.
- Do not operate the device near heat sources, direct sunlight, or in damp environments.
- Maintain a minimum distance of 10 cm from the back wall and 30 cm from the top for proper ventilation.
- The ventilation area must always be free of dust and obstructions to ensure optimal cooling performance.
- The refrigerant is flammable – avoid damage to the cooling circuit. In case of a leak, ventilate the room thoroughly and avoid open flames or sparks.
- If visible damage or malfunctions occur, immediately stop operation and contact the authorized dealer.
- Before cleaning, maintenance, or extended periods of non-use, unplug the device and fully defrost it.
- Regularly clean the condenser slots to remove dust buildup and maintain efficiency.
- Repairs and maintenance must only be performed by qualified personnel.
