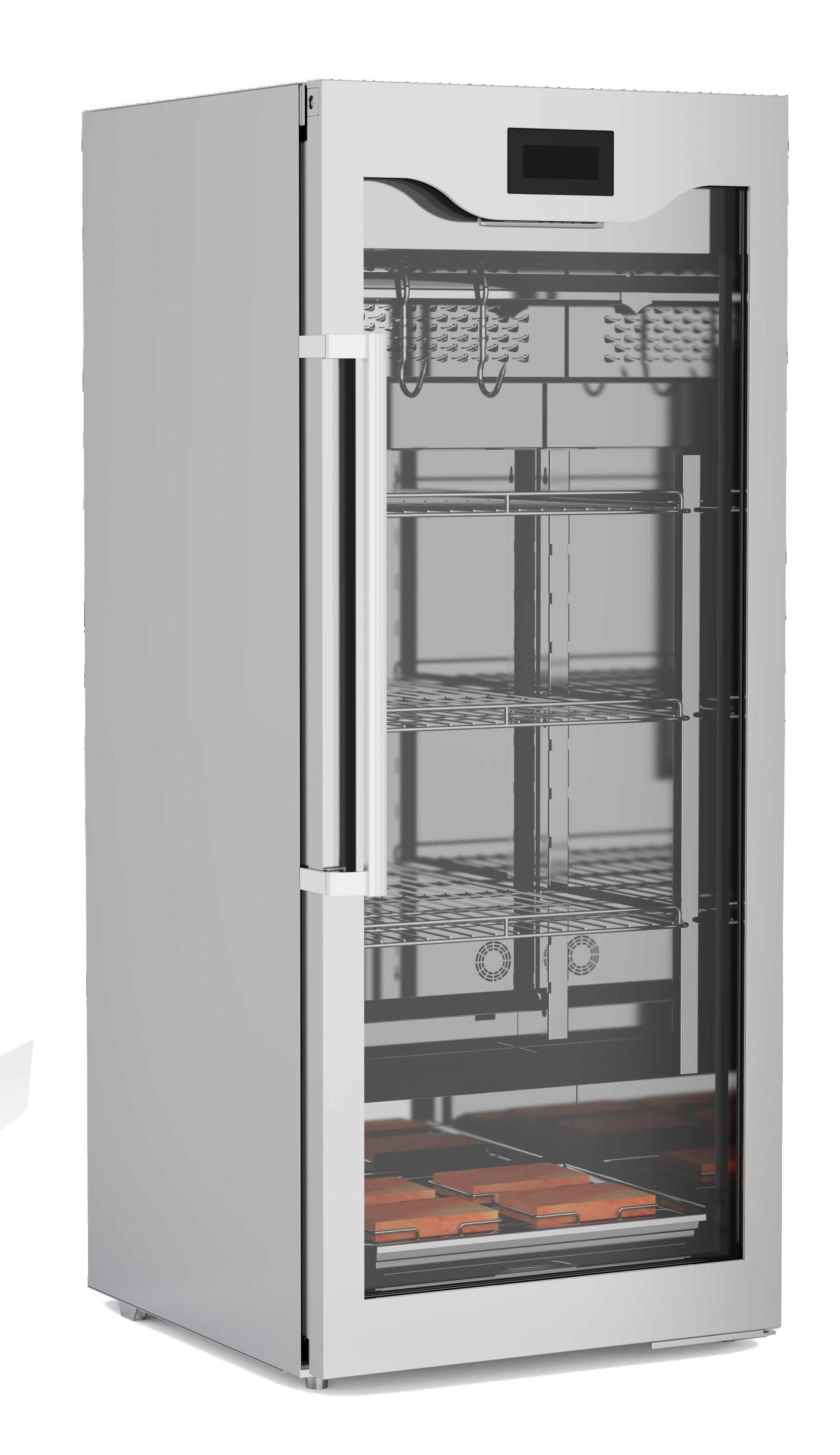

Dry Aging Cabinet Model DA 480

- Material: (Gehäuse): stainless steel, (Innen): plastic (antibacterial)
- Manually closing door, double glazed
- 4 feet, 2 adjustable
- Digital temperature control
- Humidity (30% - 90%)
- LED-lighting 0.4 W (separately switchable)
- Ultraviolet system
- Includes salt container
- Activated carbon filter
- Lockable door
- Circulated cooling with fan
- Includes 3 height-adjustable shelves, W 571 x D 451.5 mm + 2 meat hooks
- Holder for meat hooks, not adjustable, load capacity up to 80 kg per hook
- Temperature range: 0 / + 25 °C
- Connection: 220-240 V - 50 Hz - 0.139 kW
- Capacity: 480 liters
- interior dimensions: W 572 x D 710 x H 1362 mm
- Exterior dimensions: W 700 x D 810 x H 1662 mm
- Weight (net/gross): 122 / 137 kg
- Refrigerant: R290

Safety and Warning Instructions

- Place the device exclusively on a stable, level, and well-ventilated surface.
- The aging cabinet is intended for indoor use only and should be protected from direct sunlight, moisture, and heat sources.
- Ensure that the mains voltage matches the specifications on the rating plate.
- Children and unauthorized persons must not operate the device or be left unattended near it.
- The device must only be used for the aging of meat. Mixing different aging types, such as meat, cheese, or sausage, may lead to spoilage and hygiene issues.
- Do not block or cover the ventilation openings during operation to avoid overheating.
- The refrigerant is flammable. During transport and installation, ensure that the refrigerant circuit is not damaged.
- In case of a refrigerant leak, immediately ventilate the room, disconnect the device from the power supply, and avoid open flames or sparks.
- Repairs must only be carried out by qualified personnel.
- Before cleaning, maintenance, or extended periods of non-use, switch off the device, disconnect it from the power supply, and allow it to cool completely.
- Open the door only when necessary, as frequent opening can affect humidity, temperature, and the aging process.
- The UV light in the device is used for air sterilization and should not be looked at directly. Do not remove safety covers.
- The water tank must be regularly refilled with clean water to maintain proper humidity levels inside the device. Do not use dirty or contaminated water.
- There is a risk of injury from falling meat pieces or hooks – exercise caution when loading and unloading the cabinet.
- The aging cabinet is equipped with an automatic defrost function. During defrost cycles, do not touch components, as they may become hot.
- Dispose of packaging materials safely, as they can pose a suffocation hazard.
- Regular cleaning of the interior, meat hooks, and racks is required to maintain hygienic conditions.
- If visible damage or malfunctions occur, immediately stop operation and contact qualified personnel.
